Description
The FEV N-TEC 8865 Series fire suppression system was developed for professional top-level motorsport and meets the extremely stringent requirements of FIA 8865-2015 (Technical List 52), which are mandatory in many international racing series.
The system uses an electrically activated Remote Charge system, enabling particularly efficient gas distribution and extremely rapid extinguishing times. It uses FK5-1-12 gas as its extinguishing agent – highly effective, residue-free, water-free and non-toxic.
The gas is distributed through one floor-mounted cockpit bar nozzle and two atomising engine bay X-nozzles. This configuration enables straightforward installation, optimum coverage and maximum extinguishing performance with minimal system complexity.
The system is available in various cylinder sizes, allowing it to be precisely matched to the cockpit volume.
Applications
Suitable for:
-
Vehicles competing in top-level motorsport
-
International racing series requiring FIA 8865-2015 compliance
-
Closed cockpits with a defined interior volume
Extinguishing agent – FK5-1-12
-
Highly effective gaseous extinguishing agent
-
No residue after activation
-
No water – no damage to electrical systems or components
-
No corrosion or deposits
-
Non-toxic and safe for vehicle occupants
Included in the kit
-

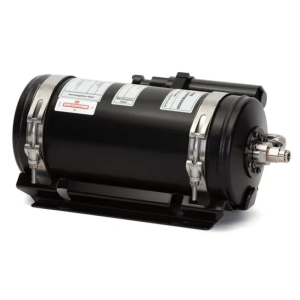

Aluminium Remote Charge cylinder pre-filled with N-TEC (FK5-1-12)
-
Mounting bracket with T-bolt retaining straps
-
1× cockpit bar nozzle (floor-mounted)
-
2× engine bay X-nozzles
-
8 mm and 10 mm extinguishing lines
-
Connectors and hose clips
-
Control box with wiring harness
-
Internal activation button
-
External activation button
-
2× FIA “E” stickers
-
Installation and operating instructions
Cylinder and cockpit volume options
-
2.95 kg – suitable for cockpit volumes from 1.25 m³ to 2.3 m³
-
3.55 kg – suitable for cockpit volumes from 2.0 m³ to 3.32 m³
-
4.10 kg – suitable for cockpit volumes from 2.3 m³ to 4.1 m³
Dimensions
-
2.95 kg: length 323 mm (including activation head), Ø 114 mm
-
3.55 kg: length 316 mm (including activation head), Ø 127 mm
-
4.10 kg: length 334 mm (including activation head), Ø 127 mm
Approval
-
FIA 8865-2015 – Technical List 52
